2025C
2025电赛C题

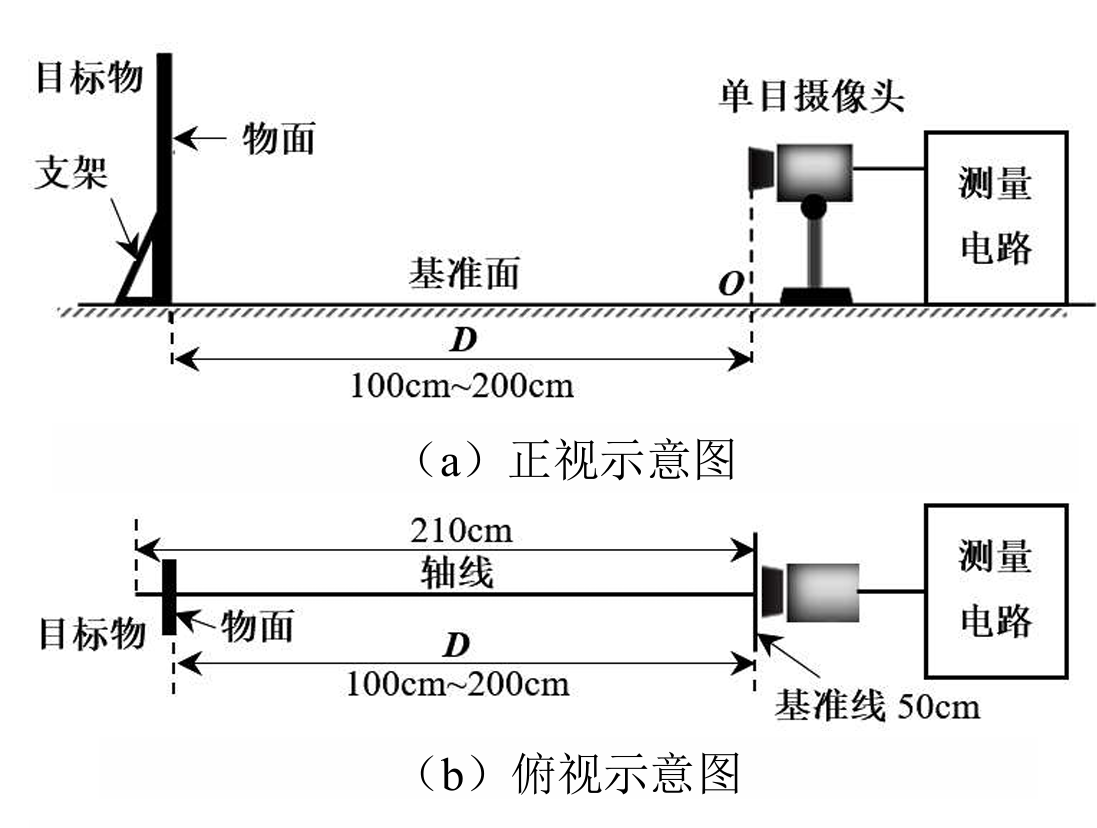

装置以上图为示例（此处仅做视觉思路讨论）
一、设计思路&方案
1、相似三角形
本方案主要基于相似三角形原理与计算机视觉几何算法。 首先，设定 A4 纸为标准物理参照锚点，经摄像头标定获取焦距参数后，通过提取参照物轮廓及计算像素宽度，利用相似三角形公式（D = F * W / P）解算摄像头与目标平面的垂直距离 ；其次，引入透视变换（Perspective Transform）算法校正非垂直拍摄产生的几何畸变，将图像重映射为标准正视图，确立“像素-物理尺寸”的线性对应关系 ；最后，在矫正平面内运用多边形逼近与圆形度分析算法，实现对正方形、三角形及圆形的精准分类与物理尺寸换算 。
2、相机标定
本方案基于针孔成像模型与多坐标系变换理论，旨在建立二维像素平面与三维物理世界之间的严格数学映射 。其核心设计思路主要包含三个步骤：首先是参数解算与标定，系统需预先拍摄多张不同角度的棋盘格标定板图像，通过算法解算摄像头的内参矩阵（包含焦距 f_x, f_y及主点坐标）与畸变系数（径向与切向畸变），同时确定摄像头相对于测量平面的外参矩阵（旋转向量R与平移向量T）。其次是逆向投影与坐标重构，在测量阶段利用畸变系数对原始图像进行去畸变处理，消除广角镜头产生的桶形或枕形形变，随后基于投影矩阵的逆变换，将目标特征点的像素坐标 \((u, v)\) 反向映射回世界坐标系 (X_w, Y_w, Z_w) 。最后是物理量化计算，在重构的世界坐标系中计算特征点间的欧氏距离，直接输出目标的实际物理尺寸与空间距离，从而实现精密测量 。然而，其缺陷在于对系统刚性要求极高：外参矩阵高度依赖摄像头与地面的固定相对位姿，一旦摄像头发生微小位移或振动，或环境温度导致镜头光路变化，均需重新繁琐标定。这使得该方案在动态或非实验室环境下显得不够灵活，难以满足快速部署的需求 。
因此，在现实条件下，我们最终采用的是相似三角形原理 的思路
二、代码设计
# sum.py
import cv2
import numpy as np
import enum
import math
import juzhenkey
import serial.tools.list_ports
import RPi.GPIO as GPIO
from ina226 import INA226
class ContourType(enum.Enum):
Nothing = 1,
Basic_shapes = 2, # 合并正方形和三角形检测
Basic_circle = 3,
Extension_Two_and_One = 5,
Extension_Rotate = 6,
Distance_Measure = 7 # 单独测距离模式
Nested_Rectangle = 8
### A4边框识别和测距
def calculate_pixel_width(contour):
"""使用最小外接接矩形计算短边"""
rect = cv2.minAreaRect(contour)
width, height = rect[1]
distance = min(width, height)
return distance # 返回短边长度
def detect_a4_contour(image):
"""检测A4纸轮廓，返回轮廓、阈值图像和A4纸像素面积"""
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
# 自适应阈值处理 - 增强黑色边框
thresh = cv2.adaptiveThreshold(
gray, 255,
cv2.ADAPTIVE_THRESH_GAUSSIAN_C,
cv2.THRESH_BINARY_INV, 77, 10
)
thresh_copy = thresh.copy()
kernel = np.ones((3, 3), np.uint8)
mask = cv2.morphologyEx(thresh, cv2.MORPH_OPEN, kernel)
contours, _ = cv2.findContours(mask, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
if DEBUG_MODE:
print(f"检测到 {len(contours)} 个轮廓")
# 筛选A4纸轮廓（最大轮廓+四边形判断）
if contours:
contours = sorted(contours, key=cv2.contourArea, reverse=True)
if DEBUG_MODE:
print(f"检测到contours {len(contours)} 个轮廓")
for cnt in contours:
area = cv2.contourArea(cnt)
if DEBUG_MODE:
print(f"检测到 A4 轮廓 {area:.2f} 面积")
if area < MIN_CONTOUR_AREA:
continue
# 多边形逼近
peri = cv2.arcLength(cnt, True)
approx = cv2.approxPolyDP(cnt, 0.02 * peri, True)
if DEBUG_MODE:
print(f"len(approx){len(approx)}")
# 四边形检测
if len(approx) == 4:
if DEBUG_MODE:
print(f"approx{approx}")
return approx, thresh_copy, area # 返回A4纸像素面积
return None, thresh_copy, 0
def calculate_distance(focal_length, pixel_width):
"""计算目标物距离D"""
return (focal_length * A4_REAL_WIDTH) / pixel_width
### 透视变换
def perspective_transform(image, contour):
"""将A4纸区域透视变换为标准矩形"""
# 将轮廓点排序为（左上、右上、右下、左下）
pts = contour.reshape(4, 2)
rect = np.zeros((4, 2), dtype="float32")
# 计算轮廓点中心
center = np.mean(pts, axis=0)
# 根据点与中心的相对位置排序
for point in pts:
if point[0] < center[0] and point[1] < center[1]:
rect[0] = point # 左上
elif point[0] > center[0] and point[1] < center[1]:
rect[1] = point # 右上
elif point[0] > center[0] and point[1] > center[1]:
rect[2] = point # 右下
else:
rect[3] = point # 左下
# 计算目标标矩形尺寸（保持A4比例）
width = max(
np.linalg.norm(rect[0] - rect[1]),
np.linalg.norm(rect[2] - rect[3])
)
height = max(
np.linalg.norm(rect[0] - rect[3]),
np.linalg.norm(rect[1] - rect[2])
)
# 创建目标点
dst = np.array([
[0, 0],
[width - 1, 0],
[width - 1, height - 1],
[0, height - 1]
], dtype="float32")
# 计算变换矩阵
M = cv2.getPerspectiveTransform(rect, dst)
# 应用透视变换
warped = cv2.warpPerspective(image, M, (int(width), int(height)))
return warped
def calculate_rotation(contour):
"""计算形状的旋转角度（内部使用，不对外输出）"""
rect = cv2.minAreaRect(contour)
angle = rect[2]
# 优化角度计算，确保范围在0-90度之间
if angle < -45:
angle += 90
angle = abs(angle)
if angle > 90:
angle = 180 - angle
return angle
### 形状检测函数
def detect_squares_in_a4(warped, a4_pixel_area):
"""检测正方形，使用面积比例例计算边长"""
inverted_gray = cv2.bitwise_not(warped)
_, binary_img = cv2.threshold(inverted_gray, 160, 255, cv2.THRESH_BINARY)
contours, _ = cv2.findContours(binary_img, cv2.RETR_LIST, cv2.CHAIN_APPROX_NONE)
squares = []
for cnt in contours:
peri = cv2.arcLength(cnt, True)
approx = cv2.approxPolyDP(cnt, 0.02 * peri, True)
if len(approx) == 4 and is_square(approx):
# 计算正方形像素面积（白色部分）
square_pixel_area = cv2.contourArea(approx)
if square_pixel_area < 2:
continue
# 核心：通过面积比例计算真实面积
if a4_pixel_area > 0:
area_ratio = square_pixel_area / a4_pixel_area
square_real_area = A4_REAL_AREA * area_ratio
square_real_side = math.sqrt(square_real_area)
else:
# 回退方案：原有比例方法
square_real_side = calculate_square_size_using_a4_ratio(
calculate_side_length(approx), warped)
M = cv2.moments(cnt)
cX = int(M["m10"] / M["m00"])
cY = int(M["m01"] / M["m00"])
squares.append({
"type": "square",
"size": square_real_side,
"center": (cX, cY),
"contour": approx # 添加轮廓信息
})
return squares
def is_square(contour, angle_threshold=15, aspect_threshold=0.15):
"""验证是否为正方形（基于角度和边长比例）"""
sides = []
for i in range(4):
pt1 = contour[i][0]
pt2 = contour[(i + 1) % 4][0]
sides.append(np.linalg.norm(pt2 - pt1))
max_side, min_side = max(sides), min(sides)
aspect_ratio = abs(max_side - min_side) / ((max_side + min_side) / 2)
if aspect_ratio > aspect_threshold:
return False
for i in range(4):
pt1 = contour[i][0]
pt2 = contour[(i + 1) % 4][0]
pt3 = contour[(i + 2) % 4][0]
angle = calculate_angle(pt1, pt2, pt3)
if not (85 <= angle <= 95):
return False
return True
def calculate_angle(p1, p2, p3):
"""计算三点形成的角度"""
v1 = p1 - p2
v2 = p3 - p2
cos_theta = np.dot(v1, v2) / (np.linalg.norm(v1) * np.linalg.norm(v2))
# 处理数值精度问题
cos_theta = np.clip(cos_theta, -1.0, 1.0)
return np.degrees(np.arccos(cos_theta))
def calculate_side_length(contour):
"""计算正方形边长（像素素单位）"""
sides = []
for i in range(4):
pt1 = contour[i][0]
pt2 = contour[(i + 1) % 4][0]
sides.append(np.linalg.norm(pt2 - pt1))
avg_side = np.mean(sides)
rect = cv2.minAreaRect(contour)
min_side = min(rect[1])
return (avg_side + min_side) / 2
def calculate_square_size_using_a4_ratio(pixel_side, warped_a4):
"""基于A4纸比例计算正方形实际尺寸的方法（作为备选）"""
a4_pixel_height, a4_pixel_width = warped_a4.shape[:2]
a4_pixel_ratio = a4_pixel_width / a4_pixel_height
a4_real_ratio = A4_REAL_WIDTH / A4_REAL_HEIGHT # 标准A4比例
if a4_pixel_ratio > a4_real_ratio: # 横放A4纸
pixel_to_cm = A4_REAL_HEIGHT / a4_pixel_height # 使用高度计算比例
else: # 竖放A4纸
pixel_to_cm = A4_REAL_WIDTH / a4_pixel_width # 使用宽度计算比例
return pixel_side * pixel_to_cm
def detect_triangles_in_a4(warped):
"""检测三角形"""
inverted = cv2.bitwise_not(warped)
_, binary_img = cv2.threshold(inverted, 160, 255, cv2.THRESH_BINARY)
contours, _ = cv2.findContours(binary_img, cv2.RETR_LIST, cv2.CHAIN_APPROX_SIMPLE)
triangles = []
for cnt in contours:
peri = cv2.arcLength(cnt, True)
approx = cv2.approxPolyDP(cnt, 0.04 * peri, True)
if len(approx) == 3 and is_equilateral_triangle(approx):
side_length = calculate_triangle_side(approx)
pixel_side = side_length
cm_side = (pixel_side / warped.shape[1]) * A4_REAL_WIDTH
M = cv2.moments(cnt)
cX = int(M["m10"] / M["m00"])
cY = int(M["m01"] / M["m00"])
triangles.append({
"type": "triangle",
"size": cm_side,
"center": (cX, cY),
"contour": approx # 添加轮廓信息
})
return triangles
def is_equilateral_triangle(contour, angle_threshold=15, side_threshold=0.15):
"""验证等边三角形（基于角度和边长）"""
points = contour.reshape(3, 2)
sides = [
np.linalg.norm(points[1] - points[0]),
np.linalg.norm(points[2] - points[1]),
np.linalg.norm(points[0] - points[2])
]
max_side, min_side = max(sides), min(sides)
aspect_ratio = abs(max_side - min_side) / ((max_side + min_side) / 2)
if aspect_ratio > side_threshold:
return False
for i in range(3):
a, b, c = points[i], points[(i + 1) % 3], points[(i + 2) % 3]
angle = calculate_angle(a, b, c)
if not (55 <= angle <= 65):
return False
return True
def calculate_triangle_side(contour):
"""计算三角形边长（三种方法融合）"""
points = contour.reshape(3, 2)
sides_direct = [
np.linalg.norm(points[1] - points[0]),
np.linalg.norm(points[2] - points[1]),
np.linalg.norm(points[0] - points[2])
]
avg_side = np.mean(sides_direct)
(cx, cy), radius = cv2.minEnclosingCircle(contour)
circum_radius = radius
theoretical_side = circum_radius * np.sqrt(3)
area = cv2.contourArea(contour)
area_side = (4 * area / np.sqrt(3)) ** 0.5
return (avg_side * 0.6 + theoretical_side * 0.3 + area_side * 0.1)
def detect_circle_in_a4(warped):
"""检测圆形"""
inverted_gray = cv2.bitwise_not(warped)
_, binary_img = cv2.threshold(inverted_gray, 160, 255, cv2.THRESH_BINARY)
contours, _ = cv2.findContours(binary_img, cv2.RETR_LIST, cv2.CHAIN_APPROX_SIMPLE)
MIN_AREA = 30
MAX_AREA = 6000
MIN_CIRCULARITY = 0.7
MAX_CIRCULARITY = 1.3
for contour in contours:
area = cv2.contourArea(contour)
perimeter = cv2.arcLength(contour, True)
if perimeter == 0:
continue
circularity = (4 * np.pi * area) / (perimeter ** 2)
if (MIN_AREA <= area <= MAX_AREA and
MIN_CIRCULARITY <= circularity <= MAX_CIRCULARITY):
(x, y), radius = cv2.minEnclosingCircle(contour)
center = (int(x), int(y))
diameter = 2 * radius
pixel_diameter = diameter * circularity
actual_diameter = (pixel_diameter / warped.shape[1]) * A4_REAL_WIDTH
if actual_diameter < 9:
continue
return {
"type": "circle",
"size": actual_diameter,
"center": (int(x), int(y))
}
return None
def detect_and_measure_squares(warped_a4, a4_pixel_area):
"""检测測并测量A4纸上的正方形，使用面积比例例计算边长"""
# 确保输入转为灰度图
if len(warped_a4.shape) == 3:
gray = cv2.cvtColor(warped_a4, cv2.COLOR_BGR2GRAY)
else:
gray = warped_a4.copy()
inverted_gray = cv2.bitwise_not(gray)
# 阈值处理
_, binary_img = cv2.threshold(inverted_gray, 150, 255, cv2.THRESH_BINARY)
# 形态学操作
kernel = np.ones((2, 2), np.uint8)
closed1 = cv2.morphologyEx(binary_img, cv2.MORPH_CLOSE, kernel, iterations=1)
opened = cv2.morphologyEx(closed1, cv2.MORPH_OPEN, kernel, iterations=1)
# 寻找轮廓
contours, _ = cv2.findContours(opened, cv2.RETR_LIST, cv2.CHAIN_APPROX_SIMPLE)
squares = []
for cnt in contours:
# 过滤过小轮廓
area = cv2.contourArea(cnt)
if area < 5:
continue
# 轮廓近似
peri = cv2.arcLength(cnt, True)
approx = cv2.approxPolyDP(cnt, 0.03 * peri, True)
# 检查是否为四边形
if len(approx) == 4:
# 计算四条边长度
sides = []
for i in range(4):
x1, y1 = approx[i][0]
x2, y2 = approx[(i + 1) % 4][0]
length = np.sqrt((x2 - x1) ** 2 + (y2 - y1) ** 2)
sides.append(length)
# 检查边长比例（正方形判断）
max_side = max(sides)
min_side = min(sides)
if max_side == 0:
continue
aspect_ratio = min_side / max_side
if aspect_ratio < (1 - 0.25): # 放宽的比例阈值
continue
# 检查角度是否接近直角
angles = []
for i in range(4):
p_curr = approx[i][0]
p_prev = approx[(i - 1) % 4][0]
p_next = approx[(i + 1) % 4][0]
v_prev = p_curr - p_prev
v_next = p_curr - p_next
dot = np.dot(v_prev, v_next)
norm_prev = np.linalg.norm(v_prev)
norm_next = np.linalg.norm(v_next)
if norm_prev > 0 and norm_next > 0:
cos_theta = dot / (norm_prev * norm_next)
angle = np.abs(np.degrees(np.arccos(np.clip(cos_theta, -1.0, 1.0))))
angles.append(angle)
# 角度检查
if not angles or not all(70 < a < 110 for a in angles):
continue
# 计算平均边长
side_length = np.mean(sides)
# 面积一致性检查
contour_area = cv2.contourArea(approx)
expected_area = side_length ** 2
if not (0.5 < (contour_area / expected_area) < 1.5):
continue
# 计算中心坐标
M = cv2.moments(cnt)
if M["m00"] == 0:
continue
cX = int(M["m10"] / M["m00"])
cY = int(M["m01"] / M["m00"])
# 计算实际尺寸（使用面积比例法）
actual_size = None
if a4_pixel_area > 0:
area_ratio = contour_area / a4_pixel_area
square_real_area = A4_REAL_AREA * area_ratio
actual_size = math.sqrt(square_real_area)
else:
actual_size = calculate_square_size_using_a4_ratio(side_length, warped_a4)
# 添加到结果列表
squares.append({
"type": "square",
"side_length": side_length,
"center": (cX, cY),
"actual_size": actual_size,
"area": contour_area,
"contour": approx # 添加轮廓信息
})
# 按面积排序
squares.sort(key=lambda x: x["area"])
return squares
def find_min_area_square(squares):
"""识别最小面积的正方形"""
if not squares:
return None
return min(squares, key=lambda x: x["side_length"])
def convert_to_cm(pixel_length, warped_image):
"""将像素长度转换为实际厘米"""
a4_pixel_width = warped_image.shape[1]
pixel_to_cm_ratio = A4_REAL_WIDTH / a4_pixel_width
return pixel_length * pixel_to_cm_ratio
# ===== FENGE功能: 内切圆辅助函数开始 =====
def find_local_maxima(dist, min_radius=5):
"""查找距离变换图中的局部最大值点"""
dilated = cv2.dilate(dist, np.ones((3, 3), np.uint8))
local_max = (dist == dilated)
radius_mask = dist > min_radius
maxima = np.where(local_max & radius_mask)
points = list(zip(maxima[1], maxima[0])) # (x, y)
radii = dist[maxima]
return points, radii
def compute_intersection(line1, line2):
"""计算两条直线的交点"""
x1, y1, x2, y2 = line1
x3, y3, x4, y4 = line2
denom = (x1 - x2) * (y3 - y4) - (y1 - y2) * (x3 - x4)
if abs(denom) < 1e-6: # 避免除零错误
return None
px = ((x1 * y2 - y1 * x2) * (x3 - x4) - (x1 - x2) * (x3 * y4 - y3 * x4)) / denom
py = ((x1 * y2 - y1 * x2) * (y3 - y4) - (y1 - y2) * (x3 * y4 - y3 * x4)) / denom
# 检查交点是否在合理范围内
if abs(px) > 10000 or abs(py) > 10000:
return None
return int(px), int(py)
def get_lines_and_intersections(edges, min_line_length=30, max_line_gap=10):
"""获取直线和交点"""
lines = cv2.HoughLinesP(edges, 1, np.pi / 180, threshold=80,
minLineLength=min_line_length, maxLineGap=max_line_gap)
intersections = []
if lines is not None and len(lines) > 1:
for i in range(min(len(lines), 20)): # 限制线条数量避免过多计算
for j in range(i + 1, min(len(lines), 20)):
pt = compute_intersection(lines[i][0], lines[j][0])
if pt is not None:
intersections.append(pt)
return lines, intersections
def get_valid_min_inscribed_circle(img, min_area=500, min_radius=5, ratio_thresh=0.5,
intersections=None, px_per_cm=100):
"""获取有效的最小内切圆"""
_, binary = cv2.threshold(img, 0, 255, cv2.THRESH_BINARY_INV + cv2.THRESH_OTSU)
num_labels, labels = cv2.connectedComponents(binary)
circles = []
diameters = []
if intersections is None:
intersections = []
for label in range(1, num_labels):
mask = np.uint8(labels == label) * 255
area = cv2.countNonZero(mask)
if area < min_area:
continue
dist_transform = cv2.distanceTransform(mask, cv2.DIST_L2, 5)
centers, radii = find_local_maxima(dist_transform, min_radius)
for center, radius in zip(centers, radii):
cx, cy = center
# 检查是否有有效的交点，并且避免空列表或无效值
too_close = False
if intersections:
try:
too_close = any(np.hypot(cx - ix, cy - iy) < radius * 1.2
for ix, iy in intersections
if ix is not None and iy is not None)
except:
too_close = False
if too_close:
continue
diameter = radius * 2
diameter_cm = diameter / px_per_cm
if diameter_cm >= 5.5: # 只保留有效圆
circles.append((center, int(radius)))
diameters.append((diameter, center, int(radius)))
valid_min_circle = None
valid_min_diameter = None
if diameters:
max_diameter_tuple = max(diameters, key=lambda x: x[0])
max_diameter = max_diameter_tuple[0]
valid_circles = [d for d in diameters if d[0] > ratio_thresh * max_diameter]
if valid_circles:
valid_min_circle_tuple = min(valid_circles, key=lambda x: x[0])
valid_min_diameter, valid_min_center, valid_min_radius = valid_min_circle_tuple
valid_min_circle = (valid_min_center, valid_min_radius)
else:
max_diameter_tuple = None
max_diameter = None
return circles, max_diameter_tuple if diameters else None, valid_min_circle, valid_min_diameter, max_diameter if diameters else None
# ===== FENGE功能: 内切圆辅助函数结束 =====
# ===== FENGE功能: 嵌套矩形检测函数开始 =====
def find_nested_rectangles_fenge(contours, area_thresh=500):
"""FENGE功能：查找嵌套矩形"""
rects = []
for cnt in contours:
epsilon = 0.02 * cv2.arcLength(cnt, True)
approx = cv2.approxPolyDP(cnt, epsilon, True)
if len(approx) == 4 and cv2.isContourConvex(approx):
area = cv2.contourArea(approx)
if area > area_thresh:
rects.append((area, approx))
rects = sorted(rects, key=lambda x: -x[0])
for i in range(len(rects)):
outer = rects[i][1]
for j in range(i + 1, len(rects)):
inner = rects[j][1]
if all(cv2.pointPolygonTest(outer, (float(p[0][0]), float(p[0][1])), False) >= 0 for p in inner):
return outer, inner
return None, None
# ===== FENGE功能: 嵌套矩形检测函数结束 =====
# ===== FENGE功能: 主处理函数开始 =====
def process_nested_rectangle_detection(frame):
"""处理嵌套矩形和内切圆检测"""
gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
_, binary = cv2.threshold(gray, 120, 255, cv2.THRESH_BINARY_INV)
contours, _ = cv2.findContours(binary, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)
outer_box, inner_box = find_nested_rectangles_fenge(contours)
result_text = "Nested Rect: Not found"
if outer_box is not None and inner_box is not None:
cv2.drawContours(frame, [outer_box], -1, (0, 255, 0), 2)
cv2.drawContours(frame, [inner_box], -1, (255, 0, 0), 2)
x, y, w, h = cv2.boundingRect(outer_box)
distance_w = (FENGE_FOCAL_LENGTH * FENGE_KNOWN_WIDTH_CM) / w
distance_h = (FENGE_FOCAL_LENGTH * FENGE_KNOWN_HEIGHT_CM) / h
distance = (distance_w + distance_h) / 2
cv2.putText(frame, f"Distance: {distance:.2f} cm", (x, y - 10),
cv2.FONT_HERSHEY_SIMPLEX, 0.6, (0, 0, 255), 2)
x2, y2, w2, h2 = cv2.boundingRect(inner_box)
border_px = ((x2 - x) + ((x + w) - (x2 + w2)) + (y2 - y) + ((y + h) - (y2 + h2))) / 4
px_per_cm = border_px / FENGE_REAL_BORDER_WIDTH_CM if border_px > 0 else 100
roi = gray[y:y + h, x:x + w]
edge_roi = cv2.Canny(roi, 50, 150)
lines, intersections = get_lines_and_intersections(edge_roi)
circles, max_tuple, min_circle, min_diameter, max_diameter = get_valid_min_inscribed_circle(
roi, min_area=500, min_radius=5, ratio_thresh=0.5, intersections=intersections, px_per_cm=px_per_cm)
if max_tuple:
_, max_center, max_radius = max_tuple
cv2.circle(frame, (max_center[0] + x, max_center[1] + y), max_radius, (255, 0, 0), 2)
if min_circle and min_diameter and max_diameter:
min_center, min_radius = min_circle
# 简化版本，不使用畸变校正
min_diameter_cm = min_diameter / px_per_cm
max_diameter_cm = max_diameter / px_per_cm
ratio = min_diameter_cm / max_diameter_cm -0.2
# ===== 计算最小矩形边长 =====
# 获取内部矩形框的边长
inner_width = w2 # 内部矩形的宽度（像素）
inner_height = h2 # 内部矩形的高度（像素）
# 转换为厘米
inner_width_cm = inner_width / px_per_cm
inner_height_cm = inner_height / px_per_cm
# 最小边长
min_rect_side = min(inner_width_cm, inner_height_cm)
# 打印结果
print(f"检测到最小矩形边长: {min_diameter_cm:.1f} cm")
# 绘制结果
cv2.circle(frame, (min_center[0] + x, min_center[1] + y), min_radius, (0, 0, 255), 2)
result_text = f"Rect: {min_rect_side:.1f}cm | Circles: {min_diameter_cm:.1f}/{max_diameter_cm:.1f}cm R={ratio:.2f}"
if lines is not None:
for line in lines:
x1, y1, x2, y2 = line[0]
cv2.line(frame, (x1 + x, y1 + y), (x2 + x, y2 + y), (200, 200, 0), 1)
for pt in intersections:
cv2.circle(frame, (pt[0] + x, pt[1] + y), 3, (255, 255, 0), -1)
return result_text
# ===== FENGE功能: 主处理函数结束 =====
if __name__ == "__main__":
### 主循环
'''
print("程序启动 - 按以下键选择检测模式:")
print("1: 基本形状检测（正方形和三角形）")
print("2: 圆形检测")
print("3: 检测多个正方形(最小)")
print("4: 检测旋转信息")
print("5: 单独测距离")
print("ESC: 退出程序")
'''
sensor = INA226()
contour_type = ContourType.Nothing
DEBUG_MODE = False # 调试模式显示中间过程
A4_REAL_WIDTH = 21.0 # A4纸实际宽度(cm)
A4_REAL_HEIGHT = 29.7 # A4纸实际高度(cm)
A4_REAL_AREA = A4_REAL_WIDTH * A4_REAL_HEIGHT # A4纸实际面积(cm²)
MIN_CONTOUR_AREA = 1200 # 最小轮廓面积阈值（过滤噪声）
FOCAL_LENGTH = 678.57 # 摄像头焦距（使用默认值）
# ===== FENGE功能: 常量定义开始 =====
FENGE_KNOWN_WIDTH_CM = 21.0 # A4纸宽度
FENGE_KNOWN_HEIGHT_CM = 29.7 # A4纸高度
FENGE_FOCAL_LENGTH = 678.57 # fenge使用的焦距
FENGE_REAL_BORDER_WIDTH_CM = 2.0 # 实际黑边宽度
# ===== FENGE功能: 常量定义结束 =====
max_current_p = 0
# 创建视频捕获对象
cap = cv2.VideoCapture(0, cv2.CAP_V4L2)
cap.set(cv2.CAP_PROP_FRAME_WIDTH, 320)
cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 240)
gpio = juzhenkey.ReadGpio()
# serial_port = serial.Serial(port="/dev/ttyUSB1", baudrate=115200,timeout=0.2)
print('矩阵键盘初始化成功')
while True:
# 读取图像
ret, img_cv2 = cap.read()
if not ret:
print("无法获取摄像头图像")
break
# 显示操作提示
cv2.putText(img_cv2, "1:Shapes 2:Circle 3:MultiSq 4:Rotate 5:Distance", (10, 20),
cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 255, 0), 1)
current_a = abs(sensor.current_a())
current_p = current_a * 5
if current_p > max_current_p:
max_current_p = current_p
print(f'Current_a = {current_a:3f}A')
print(f'Current_p = {current_p:3f}A')
print(f'max_Current_p = {max_current_p:3f}A')
# 检测键盘输入
key = gpio.read_key()
if key:
print(f'检测到按键:{key}')
if key == 27: # ESC键退出
break
elif key == '1' or key == '2' or key == '3' or key == '4' or key == '5' or key == '6' or key == '7' or key == '8' or key == '9' or key =='10':
contour_type = ContourType.Distance_Measure
print("切换到单独测距离模式")
elif key == '11':
contour_type = ContourType.Basic_shapes
print("切换到基本形状检测模式（正方形和三角形）")
elif key == '12':
contour_type = ContourType.Basic_circle
print("切换到圆形检测模式")
elif key == '13':
contour_type = ContourType.Extension_Two_and_One
print("切换到多正方形检测模式")
elif key == '14':
contour_type = ContourType.Extension_Rotate
print("切换到旋转检测模式")
elif key == '15':
contour_type = ContourType.Nested_Rectangle
print("切换到重叠矩形检测模式")
# 处理图像
text = "Nothing"
if contour_type != ContourType.Nothing:
# 检测A4纸轮廓，获取A4纸像素面积
contour, thresh, a4_pixel_area = detect_a4_contour(img_cv2)
if contour is not None:
# 计算像素宽度和距离
pixel_width = calculate_pixel_width(contour)
distance = calculate_distance(FOCAL_LENGTH, pixel_width)
# 根据模式执行不同操作
if contour_type == ContourType.Distance_Measure:
# 单独测距离模式：只显示距离信息
print(f"A4纸距离: {distance:.2f} cm")
text = f"Distance: {distance:.2f} cm"
# 绘制A4纸轮廓（可视化）
cv2.drawContours(img_cv2, [contour], -1, (0, 255, 0), 2)
else:
# 透视变换
warped = perspective_transform(thresh, contour)
warped_copy = warped.copy()
if contour_type == ContourType.Basic_shapes:
# 同时检测正方形和三角形
squares = detect_squares_in_a4(warped_copy, a4_pixel_area)
triangles = detect_triangles_in_a4(warped_copy)
# 合并结果
all_shapes = squares + triangles
if all_shapes:
# 显示所有检测到的形状
shape_info = []
for shape in all_shapes:
shape_info.append(f"{shape['type']}:{shape['size']:.2f}cm")
# 在图像上标记形状中心
cv2.circle(img_cv2, shape['center'], 5, (0, 255, 0), -1)
print(f"检测到形状: {', '.join(shape_info)}, 距离: {distance:.2f} cm")
text = f"Shapes,D:{distance:.2f},{', '.join(shape_info)}"
elif contour_type == ContourType.Basic_circle:
circle = detect_circle_in_a4(warped_copy)
if circle:
print(f"圆形直径: {circle['size']:.2f} cm, 距离: {distance:.2f} cm")
text = f"Circle,D:{distance:.2f},size:{circle['size']:.2f}"
# 标记圆心
cv2.circle(img_cv2, circle['center'], 5, (0, 0, 255), -1)
elif contour_type == ContourType.Extension_Two_and_One:
squares = detect_and_measure_squares(warped, a4_pixel_area)
if squares and len(squares) > 0:
min_square = find_min_area_square(squares)
if min_square:
actual_size = min_square["actual_size"]
print(f"最小正方形边长: {actual_size:.2f} cm, 距离: {distance:.2f} cm")
text = f"MinSquare,D:{distance:.2f},size:{actual_size:.2f}"
elif contour_type == ContourType.Extension_Rotate:
squares = detect_and_measure_squares(warped, a4_pixel_area)
if squares and len(squares) > 0:
min_square = find_min_area_square(squares)
if min_square:
actual_size = min_square["actual_size"]
print(f"最小正方形边长: {actual_size:.2f} cm")
text = f"ROTATE,size:{actual_size:.2f} cm"
# ===== FENGE功能: 特殊处理开始 =====
elif contour_type == ContourType.Nested_Rectangle:
# 嵌套矩形检测不需要A4纸检测，直接处理
text = process_nested_rectangle_detection(img_cv2)
# 显示结果
cv2.putText(img_cv2, text, (10, 40), cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 0, 255), 1)
cv2.imshow("Shape Detection", img_cv2)
continue # 跳过后续A4纸检测流程
# ===== FENGE功能: 特殊处理结束 =====
# 显示结果
cv2.putText(img_cv2, text, (10, 40), cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 0, 255), 1)
cv2.imshow("Shape Detection", img_cv2)
# 释放资源
cap.release()
cv2.destroyAllWindows()
# 嵌套矩形和内切圆检测
import cv2
import numpy as np
import math
# 已知尺寸与焦距
KNOWN_WIDTH_CM = 21.0
KNOWN_HEIGHT_CM = 29.7
FOCAL_LENGTH = 400
REAL_BORDER_WIDTH_CM = 2.0 # 实际黑边宽度
# === 内切圆辅助函数 ===
def find_local_maxima(dist, min_radius=5):
dilated = cv2.dilate(dist, np.ones((3, 3), np.uint8))
local_max = (dist == dilated)
radius_mask = dist > min_radius
maxima = np.where(local_max & radius_mask)
points = list(zip(maxima[1], maxima[0])) # (x, y)
radii = dist[maxima]
return points, radii
def compute_intersection(line1, line2):
x1, y1, x2, y2 = line1
x3, y3, x4, y4 = line2
denom = (x1 - x2) * (y3 - y4) - (y1 - y2) * (x3 - x4)
if abs(denom) < 1e-6: # 避免除零错误
return None
px = ((x1 * y2 - y1 * x2) * (x3 - x4) - (x1 - x2) * (x3 * y4 - y3 * x4)) / denom
py = ((x1 * y2 - y1 * x2) * (y3 - y4) - (y1 - y2) * (x3 * y4 - y3 * x4)) / denom
# 检查交点是否在合理范围内
if abs(px) > 10000 or abs(py) > 10000:
return None
return int(px), int(py)
def get_lines_and_intersections(edges, min_line_length=30, max_line_gap=10):
lines = cv2.HoughLinesP(edges, 1, np.pi / 180, threshold=80,
minLineLength=min_line_length, maxLineGap=max_line_gap)
intersections = []
if lines is not None and len(lines) > 1:
for i in range(min(len(lines), 20)): # 限制线条数量避免过多计算
for j in range(i + 1, min(len(lines), 20)):
pt = compute_intersection(lines[i][0], lines[j][0])
if pt is not None:
intersections.append(pt)
return lines, intersections
def get_valid_min_inscribed_circle(img, min_area=500, min_radius=5, ratio_thresh=0.5,
intersections=None, px_per_cm=100):
_, binary = cv2.threshold(img, 0, 255, cv2.THRESH_BINARY_INV + cv2.THRESH_OTSU)
num_labels, labels = cv2.connectedComponents(binary)
circles = []
diameters = []
if intersections is None:
intersections = []
for label in range(1, num_labels):
mask = np.uint8(labels == label) * 255
area = cv2.countNonZero(mask)
if area < min_area:
continue
dist_transform = cv2.distanceTransform(mask, cv2.DIST_L2, 5)
centers, radii = find_local_maxima(dist_transform, min_radius)
for center, radius in zip(centers, radii):
cx, cy = center
# 检查是否有有效的交点，并且避免空列表或无效值
too_close = False
if intersections:
try:
too_close = any(np.hypot(cx - ix, cy - iy) < radius * 1.2
for ix, iy in intersections
if ix is not None and iy is not None)
except:
too_close = False
if too_close:
continue
diameter = radius * 2
diameter_cm = diameter / px_per_cm
if diameter_cm >= 5.5: # 只保留有效圆
circles.append((center, int(radius)))
diameters.append((diameter, center, int(radius)))
valid_min_circle = None
valid_min_diameter = None
if diameters:
max_diameter_tuple = max(diameters, key=lambda x: x[0])
max_diameter = max_diameter_tuple[0]
valid_circles = [d for d in diameters if d[0] > ratio_thresh * max_diameter]
if valid_circles:
valid_min_circle_tuple = min(valid_circles, key=lambda x: x[0])
valid_min_diameter, valid_min_center, valid_min_radius = valid_min_circle_tuple
valid_min_circle = (valid_min_center, valid_min_radius)
else:
max_diameter_tuple = None
max_diameter = None
return circles, max_diameter_tuple if diameters else None, valid_min_circle, valid_min_diameter, max_diameter if diameters else None
# === 嵌套矩形检测 ===
def find_nested_rectangles(contours, area_thresh=500):
rects = []
for cnt in contours:
epsilon = 0.02 * cv2.arcLength(cnt, True)
approx = cv2.approxPolyDP(cnt, epsilon, True)
if len(approx) == 4 and cv2.isContourConvex(approx):
area = cv2.contourArea(approx)
if area > area_thresh:
rects.append((area, approx))
rects = sorted(rects, key=lambda x: -x[0])
for i in range(len(rects)):
outer = rects[i][1]
for j in range(i + 1, len(rects)):
inner = rects[j][1]
if all(cv2.pointPolygonTest(outer, (float(p[0][0]), float(p[0][1])), False) >= 0 for p in inner):
return outer, inner
return None, None
# === 主程序 ===
cap = cv2.VideoCapture(0)
while True:
ret, frame = cap.read()
if not ret:
break
gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
_, binary = cv2.threshold(gray, 120, 255, cv2.THRESH_BINARY_INV)
contours, _ = cv2.findContours(binary, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)
outer_box, inner_box = find_nested_rectangles(contours)
if outer_box is not None and inner_box is not None:
cv2.drawContours(frame, [outer_box], -1, (0, 255, 0), 2)
cv2.drawContours(frame, [inner_box], -1, (255, 0, 0), 2)
x, y, w, h = cv2.boundingRect(outer_box)
distance_w = (FOCAL_LENGTH * KNOWN_WIDTH_CM) / w
distance_h = (FOCAL_LENGTH * KNOWN_HEIGHT_CM) / h
distance = (distance_w + distance_h) / 2
cv2.putText(frame, f"Distance: {distance:.2f} cm", (x, y - 10),
cv2.FONT_HERSHEY_SIMPLEX, 0.6, (0, 0, 255), 2)
x2, y2, w2, h2 = cv2.boundingRect(inner_box)
border_px = ((x2 - x) + ((x + w) - (x2 + w2)) + (y2 - y) + ((y + h) - (y2 + h2))) / 4
px_per_cm = border_px / REAL_BORDER_WIDTH_CM if border_px > 0 else 100
roi = gray[y:y + h, x:x + w]
edge_roi = cv2.Canny(roi, 50, 150)
lines, intersections = get_lines_and_intersections(edge_roi)
circles, max_tuple, min_circle, min_diameter, max_diameter = get_valid_min_inscribed_circle(
roi, min_area=500, min_radius=5, ratio_thresh=0.5, intersections=intersections, px_per_cm=px_per_cm)
if max_tuple:
_, max_center, max_radius = max_tuple
cv2.circle(frame, (max_center[0] + x, max_center[1] + y), max_radius, (255, 0, 0), 2)
if min_circle and min_diameter and max_diameter:
min_center, min_radius = min_circle
# 计算矩形框的中心点作为参考点
rect_center_x = x + w / 2
rect_center_y = y + h / 2
# 计算圆心到矩形中心的距离
min_circle_center_x = min_center[0] + x
min_circle_center_y = min_center[1] + y
# 使用相似三角形原理进行畸变校正
# 基于矩形框已知尺寸计算像素到厘米的转换比例
px_per_cm_w = w / KNOWN_WIDTH_CM # 宽度方向的像素/厘米比例
px_per_cm_h = h / KNOWN_HEIGHT_CM # 高度方向的像素/厘米比例
# 根据圆心位置进行加权平均校正
# 越靠近中心，校正因子越接近1；越远离中心，校正因子越大
dx = abs(min_circle_center_x - rect_center_x) / (w / 2) # 水平偏移比例
dy = abs(min_circle_center_y - rect_center_y) / (h / 2) # 垂直偏移比例
# 基于位置的校正因子（简化的畸变模型）
distortion_factor = 1 + 0.1 * (dx + dy) # 可根据实际情况调整系数
# 计算校正后的像素/厘米比例
effective_px_per_cm = (px_per_cm_w + px_per_cm_h) / 2 * distortion_factor
# 将像素直径转换为厘米（校正后）
min_diameter_cm = min_diameter / effective_px_per_cm
max_diameter_cm = max_diameter / effective_px_per_cm
ratio = min_diameter_cm / max_diameter_cm
cv2.circle(frame, (min_circle_center_x, min_circle_center_y), min_radius, (0, 0, 255), 2)
cv2.putText(frame, f"Min: {min_diameter_cm:.1f}cm Max: {max_diameter_cm:.1f}cm R={ratio:.2f}",
(10, 30), cv2.FONT_HERSHEY_SIMPLEX, 0.6, (0, 0, 255), 2)
cv2.putText(frame, f"Distortion: {distortion_factor:.2f}",
(10, 50), cv2.FONT_HERSHEY_SIMPLEX, 0.6, (255, 255, 0), 2)
if lines is not None:
for line in lines:
x1, y1, x2, y2 = line[0]
cv2.line(frame, (x1 + x, y1 + y), (x2 + x, y2 + y), (200, 200, 0), 1)
for pt in intersections:
cv2.circle(frame, (pt[0] + x, pt[1] + y), 3, (255, 255, 0), -1)
else:
cv2.putText(frame, "No valid nested rectangles", (20, 40),
cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 0, 255), 2)
cv2.imshow("Final Result", frame)
if cv2.waitKey(1) & 0xFF == 27:
break
cap.release()
cv2.destroyAllWindows()
# 键盘驱动
#!/usr/bin/python
#-*- coding:utf-8 -*-
import RPi.GPIO as GPIO
import time
class ReadGpio:
def __init__(self):
# 4x4矩阵键盘引脚设置
self.ROW_PINS = [5, 6, 13, 19] # 行引脚
self.COL_PINS = [12, 16, 20, 21] # 列引脚
self.key_map = [
[1, 2, 3, 4],
[5, 6, 7, 8],
[9, 10, 11, 12],
[13, 14, 15, 16]
]
self.GPIO_init()
def GPIO_init(self):
GPIO.setmode(GPIO.BCM)
# 设置行引脚为输出，初始高电平
for pin in self.ROW_PINS:
GPIO.setup(pin, GPIO.OUT)
GPIO.output(pin, GPIO.HIGH)
# 设置列引脚为输入，上拉
for pin in self.COL_PINS:
GPIO.setup(pin, GPIO.IN, pull_up_down=GPIO.PUD_UP)
print('GPIO listening!')
def read_key(self):
key_value = None
time.sleep(0.05) # 去抖动
# 扫描矩阵键盘
for row in range(4):
GPIO.output(self.ROW_PINS[row], GPIO.LOW)
for col in range(4):
if GPIO.input(self.COL_PINS[col]) == GPIO.LOW:
key_value = str(self.key_map[row][col]) # 返回字符串形式的数字
print(f"KEY {key_value} PRESS")
# 等待按键释放
while GPIO.input(self.COL_PINS[col]) == GPIO.LOW:
time.sleep(0.01)
GPIO.output(self.ROW_PINS[row], GPIO.HIGH)
return key_value
if __name__ == '__main__':
gpio = ReadGpio()
while True:
gpio.read_key()
# 能耗监测驱动
# ina226.py
import smbus
class INA226:
REG_CONFIG = 0x00
REG_SHUNT_VOLTAGE = 0x01
REG_BUS_VOLTAGE = 0x02
REG_POWER = 0x03
REG_CURRENT = 0x04
REG_CALIBRATION = 0x05
def __init__(self, i2c_addr=0x40, shunt=0.010, max_current=3.2, bus=1):
self.addr = i2c_addr
self.shunt = shunt
self.current_lsb = max_current / 32768
self.cal = int(0.00512 / (self.current_lsb * self.shunt))
self.i2c = smbus.SMBus(bus)
self._configure()
def _write_reg(self, reg, value):
self.i2c.write_i2c_block_data(self.addr, reg,
[(value >> 8) & 0xFF, value & 0xFF])
def _read_reg(self, reg):
data = self.i2c.read_i2c_block_data(self.addr, reg, 2)
return (data[0] << 8) | data[1]
def _configure(self):
# 连续模式，128 次平均，1.1 ms 转换时间
self._write_reg(self.REG_CONFIG, 0x4127)
self._write_reg(self.REG_CALIBRATION, self.cal)
def current_a(self):
raw = self._read_reg(self.REG_CURRENT)
if raw > 0x7FFF:
raw -= 0x10000
return raw * self.current_lsb
